GMC Paint Codes

Paint Codes Locations For GMC

The paint code for all GMC trucks and SUV's can be located on the service parts identification sticker. While the sticker is moved around from year to year, it still looks like the ones below. Most labels are white paper sticker, while more moderns ones are a silver label. Most paint codes in our database start out with a "WA", most cars and trucks will start out with a "BC/CC    U". BC/CC stands for basecoat/clearcoat, and the U stands for upper or body color.

Two Tone Models: A two toned car will have a "U" followed by the four digit color code for the body color, and an "L" followed by a four digit color code for the lower color or the bumper color.

For a list of touch up paint colors for your GMC go here: GMC Touch Up Paint

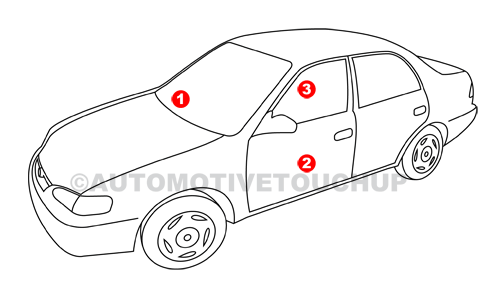

 GMC Paint Code Location Diagram 3/4 Side View


Acadia: #1 Glove Box
Canyon: #1 Glove Box
Denali: #1 Glove Box
Envoy: #1 Glove Box
Full Size Van: #2 Left side under driver seat
Jimmy: #1 Glove Box
S15: #1 Glove Box
Safari: #3 Passenger Door Rear Face,
Savana: #2 Left side under driver seat or #3 Rear Face of Right Door “B” pillar face
Sierra: #1 Glove Box
Sonoma: #1 Glove Box
Suburban: #1 Glove Box
Topkick: Side wall of cab, lower corner of cab wall behind passenger seat.
Yukon: #1 Glove Box

Other Places to Check: Passenger Side Sun Visor, Side Wall of Cab, Behind Passenger Seat,

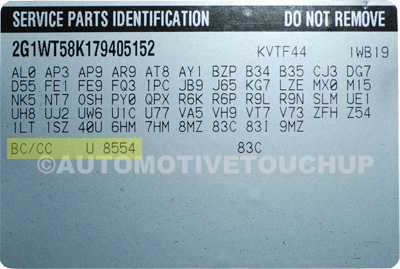

GMC Paint Code Service Parts Identification Label
This GMC Paint code is U8554 or WA8554.

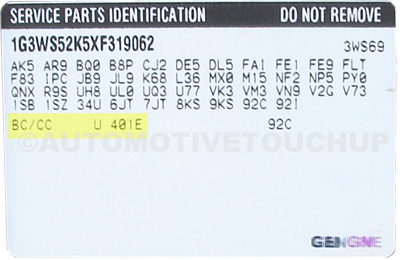

GMC Paint Code Service Parts Identification Label
This GMC paint code is U401E or WA401E.
